Yazan Steel, based in Amman, Jordan, is a well-respected manufacturer and supplier of Low Temperature Carbon Steel LF6 Flanges. They specialize in providing top-notch products that are specifically designed for challenging low-temperature and cryogenic applications. The company adheres to strict manufacturing standards and employs advanced testing methods to guarantee outstanding reliability, durability, and performance. With a wealth of industry experience, Yazan Steel delivers LF6 flanges that cater to various sectors, including petrochemicals, oil and gas, LNG processing, and refrigeration. Their dedication to precision, timely delivery, and a customer-centric approach has made them a go-to source for essential low-temperature flange solutions.
Low Temperature Carbon Steel LF6 Flanges are primarily made up of carbon, manganese, silicon, phosphorus, and sulfur, creating a balanced chemical composition that’s perfect for sub-zero operations. These flanges boast impressive mechanical properties, such as high tensile and yield strength, excellent toughness, and remarkable impact resistance in low-temperature settings. Their stable microstructure helps to prevent brittle fractures when exposed to cryogenic conditions. Additionally, LF6 flanges are known for their good weldability and formability, making them an excellent choice for demanding piping systems where safety, performance, and long-term stability are crucial.
| Material Specification Of : | ASTM A350 LF6 Flanges |
|---|---|
| South African Standard Flanges | SANSflanges And SABS flanges |
| Surface Finish | smooth, concentric serrated, stock |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |
| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |

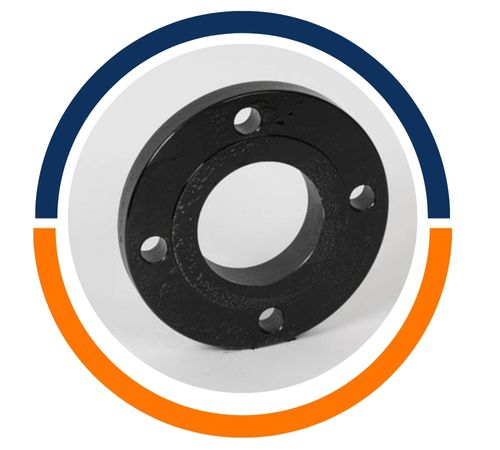

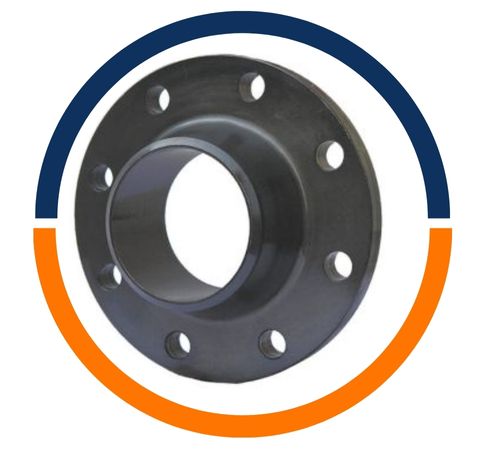

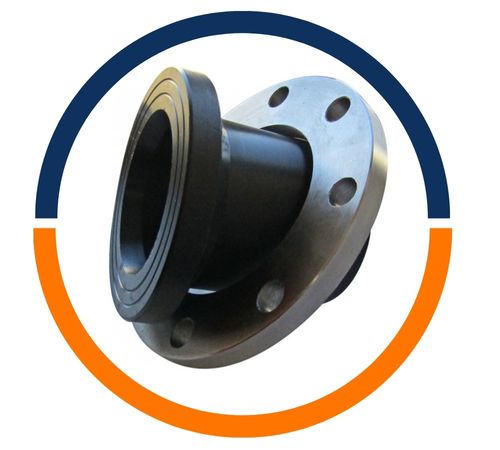

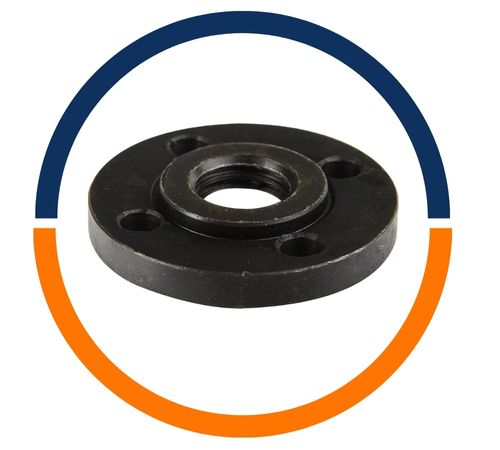

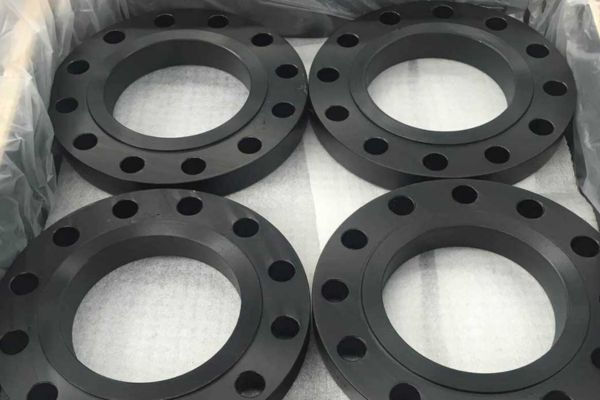

| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |

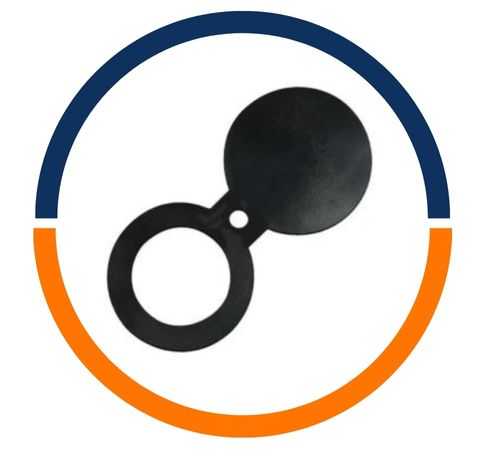

| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| European Standard Flanges | JIS B2220 Flanges (5k to 30k) and KS1503 flanges |
| Russian-Standard Flanges | GOST 12820 / 12821-80, DIN, UNI, EN 1092-1 |
| Element | Composition |
|---|---|
| Carbon, maximum | 0.20 maximum |
| Manganese | 0.90 maximum |
| Phosphorus, maximum | 0.035 maximum |
| Sulfur, maximum | 0.040 maximum |
| Silicon [Note A] | 0.20–0.35 |
| Nickel | 3.3–3.7 |
| Chromium | 0.30 maximum [Note C] |
| Molybdenum | 0.12 maximum [Note C] |
| Copper | 0.40 maximum |
| Columbium | 0.02 maximum |
| Vanadium | 0.03 maximum |
| Grade/Class | Tensile Strength | Yield Strength, minimum | Elongation, minimum | Hardness, maximum | ||
| ksi | MPa | ksi | MPa | % | HBW | |
| LTCS LF6 CL1 | 66–91 | 455–630 | 52 | 360 | 22 | 197 |
| LTCS LF6 CL2 | 75–100 | 515–690 | 60 | 415 | 20 | 197 |
| LTCS LF6 CL3 | 75–100 | 515–690 | 60 | 415 | 20 | 197 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yazan Steel is one of the most prominent manufacturers and suppliers of superior quality Low Temperature Carbon Steel LF6 Flanges in Amman, Jordan. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| TEMP °C | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -29 TO 38 | 19.6 | 51.1 | 68.1 | 102.1 | 153.2 | 255.3 | 425.5 |
| 50 | 19.2 | 50.1 | 66.8 | 100.2 | 150.4 | 250.6 | 417.7 |
| 100 | 17.7 | 46.6 | 62.1 | 93.2 | 139.8 | 233 | 388.3 |
| 150 | 15.8 | 45.1 | 60.1 | 90.2 | 135.2 | 225.4 | 375.6 |
| 200 | 13.8 | 43.8 | 58.4 | 87.6 | 131.4 | 219 | 365 |
| 250 | 12.1 | 41.9 | 55.9 | 83.9 | 125.8 | 209.7 | 349.5 |
| 300 | 10.2 | 39.8 | 53.1 | 79.6 | 119.5 | 199.1 | 331.8 |
| 325 | 9.3 | 38.7 | 51.6 | 77.4 | 116.1 | 193.6 | 322.6 |
| 350 | 8.4 | 37.6 | 50.1 | 75.1 | 112.7 | 187.8 | 313 |
| 375 | 7.4 | 36.4 | 48.5 | 72.7 | 109.1 | 181.8 | 303.1 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104.2 | 173.6 | 289.3 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 143.8 | 239.7 |
| 450 | 4.6 | 23 | 30.7 | 46 | 69 | 115 | 191.7 |
| 475 | 3.7 | 17.4 | 23.2 | 34.9 | 52.3 | 87.2 | 145.3 |
| 500 | 2.8 | 11.8 | 15.7 | 23.5 | 35.3 | 58.8 | 97.9 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
| NPS | O.D. of Flange | Flanges Thickness | Diameter of RF | Diameter of Hub at Base | Lengtd Tdru Hub | Bore or Diameter | Dia. of Hub at Bevel | Radius of Fillet | Deptd of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding (WN) Neck | Slip-On (SORF) Threaded (NPT) Socket (SWRF) | Lap Joint (Loose) | Slip-on (SORF) Socket (SWRF) | Lap Joint (Loose) | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.lf2 | 18.00 | 1/2 | 1-15/16 |
| lf2 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | lf2.lf2 | lf2.25 | lf2.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
| Nominal Pipe Sizes (NPS) | Slip On (SORF) | Threaded (NPT) | Socket Weld (SWRF) | Lap Joint (Loose) | Blind (BLRF) | Weld Neck (WRNR) |
|---|---|---|---|---|---|---|
| ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 |
| 5 | 15 | 15 | 15 | 15 | lf2 | 21 |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 |
| 18 | 130 | 130 | 130 | 160 | 2lf2 | 165 |
| lf2 | 165 | 165 | 165 | 195 | 285 | 197 |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 |
| 24 | 2lf2 | 2lf2 | 2lf2 | 275 | 430 | 268 |
In industries that require secure, leak-proof connections in cryogenic or freezing conditions, Low Temperature Carbon Steel LF6 Flanges are widely used. They find common applications in LNG storage and distribution, gas processing plants, refrigeration systems, and low-temperature chemical processing units. These flanges maintain their strength and structural integrity while handling cold liquids, gases, and low-temperature fluids. Their durability and resistance to stress caused by temperature fluctuations make them ideal for use in refineries, offshore platforms, and petrochemical facilities.
Yazan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Amman, Jordan.
