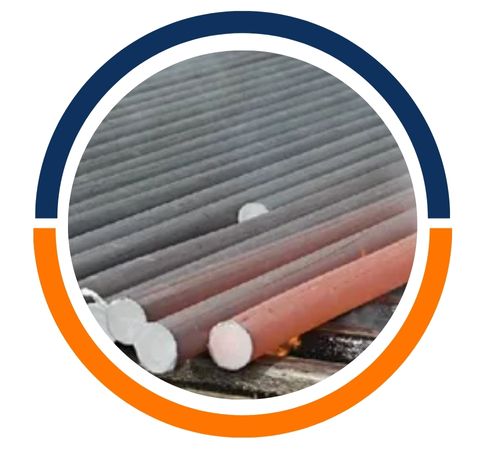

Yazan Steel, based in Amman, Jordan, is a trusted manufacturer and supplier of Carbon Steel EN-9 Bars, delivering top-notch engineering steel for tough industrial applications. EN-9 is a medium carbon steel that strikes a great balance between strength, toughness, and wear resistance. Yazan Steel produces EN-9 bars with precise dimensions, a smooth surface finish, and reliable mechanical properties, making them ideal for machining and heat treatment. These bars are commonly used in situations where moderate hardness and solid mechanical performance are essential.
Typically, Carbon Steel EN-9 Bars contain about 0.50–0.60% carbon and 0.50–0.80% manganese, along with controlled amounts of phosphorus and sulfur. This specific composition allows for a favorable response to heat treatment, enhancing strength and hardness compared to low-carbon steels. In its normalized state, EN-9 boasts a tensile strength of around 600–750 MPa and good impact resistance. After undergoing quenching and tempering, it can achieve even higher levels of strength and hardness while still maintaining adequate toughness.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |
| Round Bar Size | Diameter: 3-~800mm |
| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |
| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size (ins) | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 1 3/4 | 1 7/8 | 2 | 2 1/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 3 |
| Size (mm) | 32 | 40 | 45 | 50 | 55 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 110 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 125 | 130 | 140 | 150 | 160 | 180 | 190 | 200 | 220 | 280 |
Carbon Steel EN-9 Bars are widely utilized in the production of mechanical and automotive components. You’ll find them in applications like shafts, spindles, gears, studs, bolts, crankshafts, and couplings. They’re also perfect for general engineering parts that need good wear resistance and the ability to handle moderate shock loads. Thanks to their machinability and heat-treating capabilities, EN-9 bars are well-suited for tools, forged components, and structural parts across various industrial sectors.
