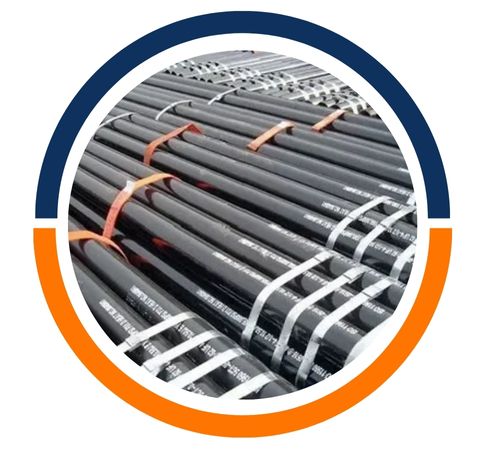

Yazan Steel, located in Amman, Jordan, stands out as a top manufacturer and supplier of high-quality carbon steel products, including the EN 10210-1 PipeName. Known for its precision engineering and dependable performance, Yazan Steel serves a variety of industrial sectors that need durable and robust steel solutions. The company skillfully blends advanced production technologies with strict quality control measures to ensure that every pipe meets international standards. With a strong commitment to excellence and customer satisfaction, Yazan Steel has become a trusted partner in supplying EN 10210-1 carbon steel pipes, consistently delivering reliable performance for structural and engineering applications.
The Carbon Steel EN 10210-1 pipes are primarily made up of low to medium carbon content, usually between 0.15% and 0.30%, along with small amounts of manganese, phosphorus, and sulfur to boost strength and machinability. These pipes showcase impressive mechanical properties, such as high tensile strength, yield strength, and good elongation, making them resistant to deformation under load. They can handle significant internal and external pressures and are suitable for both welded and seamless construction. Heat treatment processes further improve their hardness, toughness, and structural reliability.
| Attribute | Specification |
|---|---|
| Type | Seamless / Welded / ERW |

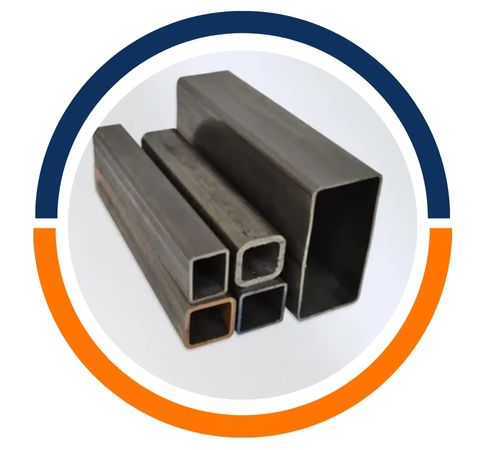

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm to 400 x 400 mm |
| Length | 6000 mm to 14000 mm |
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Standard | BS EN 10210 – Hot finished structural hollow sections of non-alloy and fine grain steels |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Dimension Range | 21.3 mm to 914 mm |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Wall Thickness | 0.5 mm to 25 mm |
| Steel Grade | Chemical Composition Limits (%) | |||||
| C Max. | Si Max. | Mn Max. | P Max. | S Max. | N Max. | |
| S235JRH | 0.17 | – | 1.40 | 0.040 | 0.040 | 0.009 |
| S275J0H | 0.20 | – | 1.50 | 0.035 | 0.035 | 0.009 |
| S275J2H | 0.20 | – | 1.50 | 0.030 | 0.030 | – |
| S355J0H | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 0.009 |
| S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| Steel Grade | Mechanical Properties | Impact Energy (KV J) | ||||
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Test Temperature At Test Temperature of ℃ | |||
| -20 | 0 | 20 | ||||
| S235JRH | 235 | 360-510 | 26 | – | – | 27 |
| S275J0H | 275 | 410-560 | 23 | – | 27 | – |
| S275J2H | 275 | 410-560 | 23 | 27 | – | – |
| S355J0H | 355 | 510-680 | 22 | – | 27 | – |
| S355J2H | 355 | 510-680 | 22 | 27 | – | – |
| S355K2H | 355 | 510-680 | 22 | 40 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10210-1 Pipe products in Amman, Jordan. Specializing in premium steel materials, we offer a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10210-1 Pipe needs.
| Size mm | kg/m | Size mm | kg/m |
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
| Outer diameter and wall Thickness | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance | ||||||
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm | ||||||
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) | ||||||
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm | ||||||
Due to their strength, durability, and versatility, Carbon Steel EN 10210-1 pipes are widely utilized in structural and engineering applications. They are perfect for supporting frameworks, columns, and beams in construction projects, including commercial and industrial buildings. Additionally, these pipes find their place in machinery, automotive, and heavy equipment manufacturing, where resistance to mechanical stress is crucial. Their excellent weldability and formability make them ideal for custom fabrication, while their corrosion resistance ensures long-lasting performance in tough environments. EN 10210-1 pipes are also used in infrastructure projects, such as bridges and pipelines.
Yazan Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Amman, Jordan.
